CIH型不銹鋼磁力化工泵安裝尺寸圖
時間：2012/10/28 來源：浙江揚子江泵業有限公司
IMF(CIH)型磁力傳動離心泵是我公司新研究開發的新型完全無泄漏耐腐蝕泵，其技術指標與國外同類產品水平相當。性能、尺寸和標記符合ISO2858/GB5662/DIN24256標準。外形安裝尺寸與IH型泵一致，方便用戶
IMF(CIH)型磁力傳動離心泵適用與石油、化工、環保、制藥、食品、造紙、印染、電鍍、污水處理等行業，是易燃、易爆、易汽化、有毒、稀有貴重和各種和各種腐蝕液體輸送的理想設備。
IMF(CIH) series magnetic-force drive centrifugal pump is a new type entirely non-leakage erosion-proof pump developed by our company, its technology reaches the level of the con-generic products from overseas, and the capability, dimension and mark are in conformity with ISO2858/GB5662/DIN24256. Its external installation dimension is the same with that of IH type pump, and is convenient to replace and use.
IMF(CIH) series magnetic-force drive centrifugal pump is applied in the fields such as petroleum, chemicals, environ-mental protection, pharmacy, foodstuff, papermaking, printingand dyeing, electroplating, sewage treatment etc., and is the ideal equipment to transfer the flammable, explosive, easily-evaporization, poisonous, rare or erosive liquids.
【IMF(CIH)型不銹鋼磁力化工泵】型號意義：
【IMF(CIH)型不銹鋼磁力化工泵】性能參數：
|
型號 |
流量 |
揚程 |
轉速 |
軸功率 |
效率 |
氣蝕余量 |
配帶電動機型號功率 | ||
|
輸送介質比重 g/cm^3 | |||||||||
|
≤1 |
≤1.3 |
≤1.84 | |||||||
|
IMF50-32-125 |
7.5 |
22 |
2900 |
1.49 |
30 |
3.5 |
Y |
Y |
Y |
|
IMF50-32-160 |
7.5 |
34 |
2900 |
2.48 |
28 |
3.5 |
Y |
Y |
Y |
|
IMF50-32-200 |
7.5 |
52.5 |
2900 |
5.10 |
21 |
2.5 |
Y |
Y |
Y |
|
IMF50-32-250 |
7.5 |
22 |
2900 |
9.57 |
17.5 |
3.5 |
Y |
Y |
Y |
|
IMF65-50-125 |
15 |
22 |
2900 |
2.25 |
40 |
3.5 |
Y |
Y |
Y |
|
IMF65-50-160 |
15 |
34 |
2900 |
4.34 |
32 |
3.5 |
Y |
Y |
Y |
|
IMF65-40-200 |
15 |
53 |
2900 |
8.66 |
25 |
3.5 |
Y |
Y |
Y |
|
IMF65-40-250 |
15 |
82 |
2900 |
13.4 |
25 |
3.5 |
Y |
Y |
Y |
|
IMF65-40-315 |
15 |
127 |
2900 |
27.33 |
19 |
3.5 |
Y |
Y |
Y |
|
IMF80-65-125 |
30 |
22.5 |
2900 |
4.48 |
41 |
4.0 |
Y |
Y |
Y |
|
IMF80-65-160 |
30 |
34 |
2900 |
7.72 |
36 |
4.0 |
Y |
Y |
Y |
|
IMF80-50-200 |
30 |
53 |
2900 |
12.03 |
36 |
4.0 |
Y |
Y |
Y |
|
IMF80-50-250 |
30 |
84 |
2900 |
19.06 |
36 |
4.0 |
Y |
Y |
Y |
|
IMF80-50-315 |
30 |
128 |
2900 |
36.05 |
29 |
4.0 |
Y |
Y |
Y |
|
IMF100-80-125 |
60 |
23 |
2900 |
8.35 |
45 |
4.0 |
Y |
Y |
Y |
|
IMF100-80-160 |
60 |
35 |
2900 |
12.43 |
46 |
4.0 |
Y |
Y |
Y |
|
IMF100-65-200 |
60 |
54 |
2900 |
21.01 |
42 |
4.0 |
Y |
Y |
Y |
|
IMF100-65-250 |
60 |
89 |
2900 |
37.98 |
37 |
4.0 |
Y |
Y |
Y |

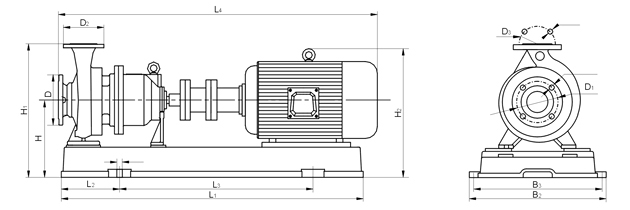

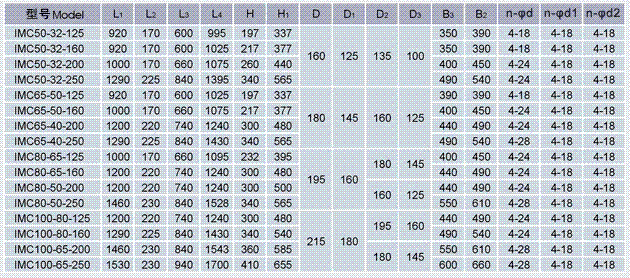

【IMF(CIH)型不銹鋼磁力化工泵】安裝尺寸圖：
